Step 1: Open/Create the main.py file

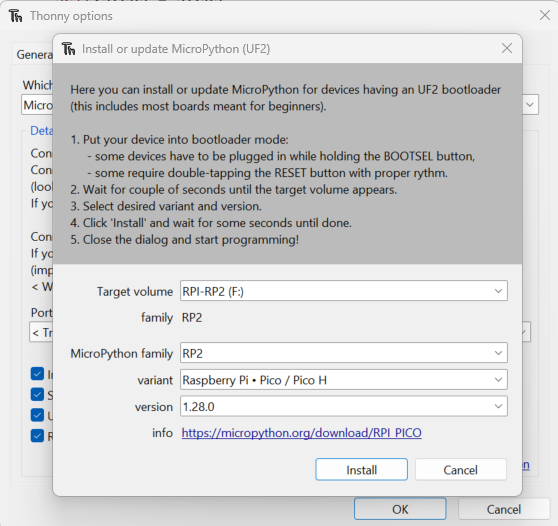

When your device is plugged into your computer, you should be able to press the File->Load button, and choose "Raspberry Pi Pico" to load from.

If no such file exists we need to make it, press File->New, and then save it to the Raspberry Pi Pico as "main.py"

Step 2: Open the Serial Monitor

To get messages back from your device, and to read errors, press the view->shellbutton and make sure you have the shell window open at the bottom.

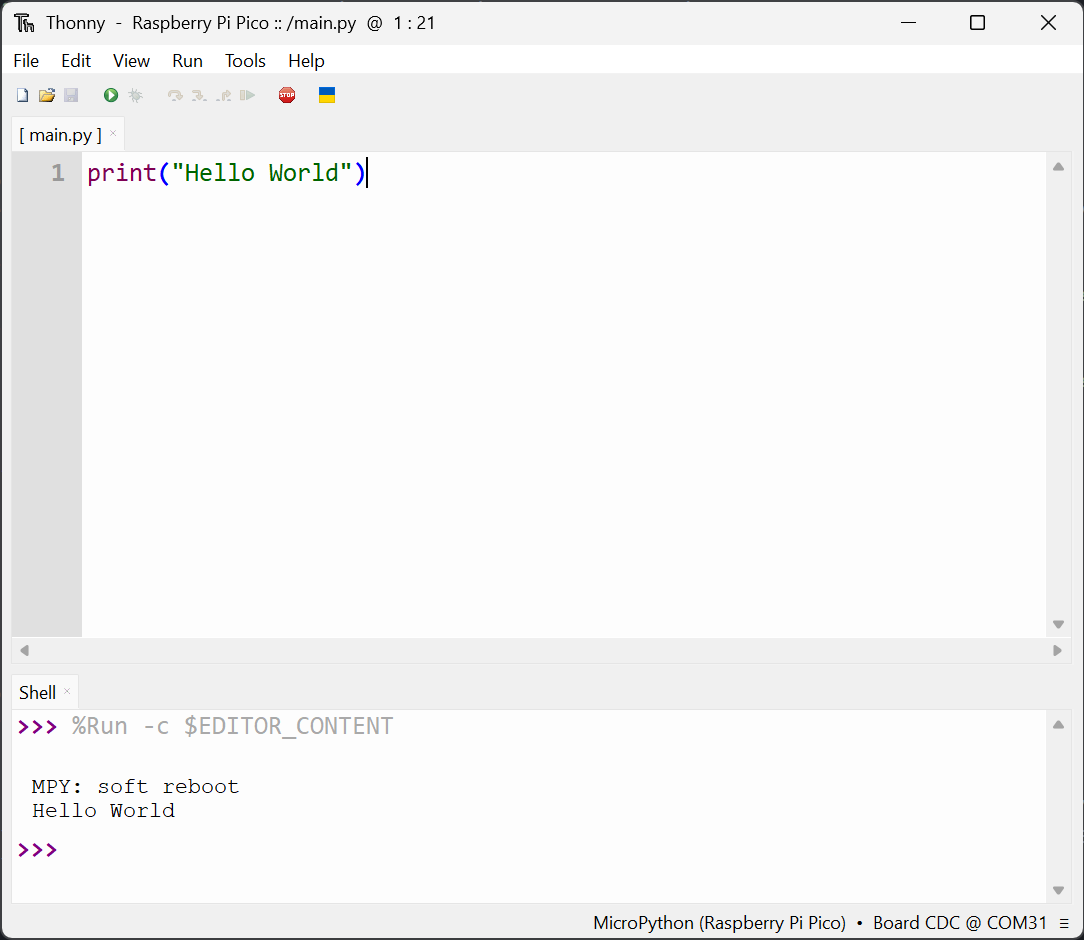

Step 3: Hello World

Your code is only updated on your device when you press "Run". If you write the code print("Hello World") and then save, yuou should see the message appear in the Serial monitor.

Note that the code won't persist on the robot after a reset unless you also SAVE it to the device, RUN just runs it once

Step 4: Code all the things!

From here you can start to write code, if you need a refresher on basic python code, go to the online lessons here.

https://realrobots.net/robocode/

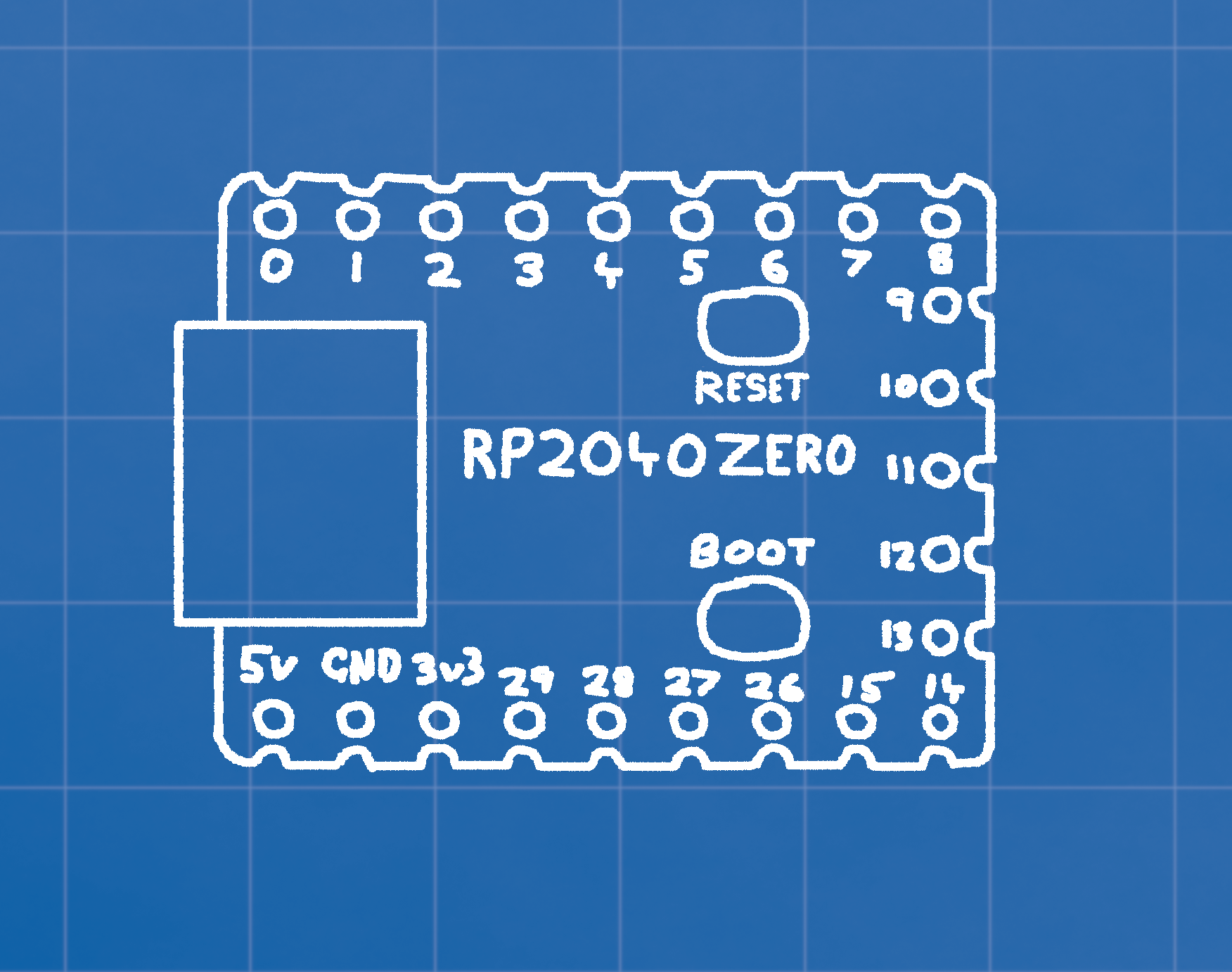

Step 1: Wiring

!!DO NOT CONNECT POSITIVE BATTERY DIRECTLY TO THE MICROCONTROLLER!!

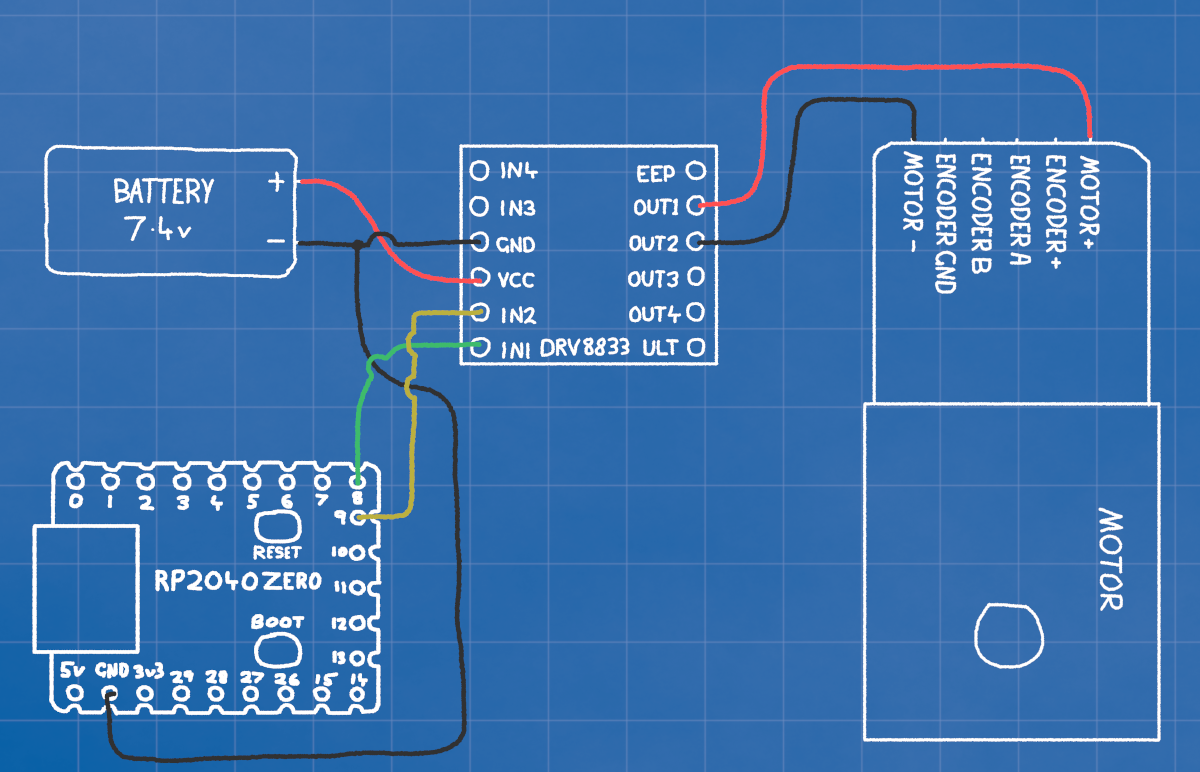

The connections on the RP2040 all use 3.3v (3v3), which is far too little to drive the motors. It can drive a motor DRIVER though. The motor driver lets us control the larger voltage from the battery to the motor.

MOTOR+ (red) ------------- DRIVER OUT1

MOTOR- (black) ----------- DRIVER OUT2

RP2040 GP9 --------------- DRIVER IN2

RP2040 GP8 --------------- DRIVER IN1

BATTERY+ (red) ----------- DRIVER VCC

BATTERY- (black) --------- DRIVER GND --------- RP2040 GND

The driver is powered by the battery, but the microcontroller with be powered by the USB. It's very important that the positive battery voltage is never connected directly to the RP2040 as that will immediately release the magic smoke.

The GND on the RP2040, driver, and battery must all be connected though. The GND is 0 volts, and is used as a reference to make sure 0 is the same on every device.

Step 2: Coding

We control the motor driver by switching which of the OUT1 and OUT2 connections is the positive and negative. When one is "high" and the other "low", the motor spins one way. If we switch which is high and low the motor will spin the other way.

To set OUT1 to max voltage, we set IN1 to 3.3v, the same for OUT2 and IN2. We can get finer control by using PWM controls, which turn the pins high and low quickly enough that it simulates voltages in between 0v and 3.3v

from machine import Pin, PWM
import time

motorIN1 = PWM(Pin(8))
motorIN2 = PWM(Pin(9))

# DRIVE FORWARD
motorIN1.duty_u16(65535) # This is the maximum value
motorIN2.duty_u16(0)     # This is the minimum value
time.sleep(1)

# DRIVE BACKWARD
motorIN1.duty_u16(0)
motorIN2.duty_u16(65535)
time.sleep(1)

# STOP
motorIN1.duty_u16(0)
motorIN2.duty_u16(0)

Step 3: Making it easier

This works, but takes a lot of typing each time, and is a little hard to read. On the right we can see a function which lets us drive the motor with a single command, and set the speed with a number from -100 to 100.

from machine import Pin, PWM

# Initialize motor PWM pins
motorIN1 = PWM(Pin(8))
motorIN2 = PWM(Pin(9))

def motor(power):
    # Make sure power is never greater than 100 or less than -100
    if power > 100:
        power = 100
    elif power < -100:
        power = -100

    # Convert 0-100 value, to 0 to 65535
    duty = abs(power) * 65535 // 100

    # Apply power to the correct motor pin
    if power > 0:
        motorIN1.duty_u16(duty)
        motorIN2.duty_u16(0)
    elif power < 0:
        motorIN1.duty_u16(0)
        motorIN2.duty_u16(duty)
    else:
        motorIN1.duty_u16(0)
        motorIN2.duty_u16(0)

# TESTS
motor(100) # FULL FORWARD
time.sleep(3)
motor(-100) # FULL REVERSE
time.sleep(3)

# Start at FULL REVERSE and slowly change from -100 to 100
for i in range(-100, 100):
    motor(i)
    print(i)
    time.sleep(0.1)

Step 4: Making it professional

Finally, to make our final code modular, cleaner, and easier to understand we can offload all out motor code into a new module.

We make a second file called motor.py which we'll import and call from our main code.py file.

Now all we need to do from the main code is:

Import the module

from motor import Motor

Initialize a motor object

left_motor = Motor(8, 9)

Set the power

left_motor.move(100)

You can also add a second, third, or 20th motor at any time just by initializing another Motor object.

right_motor = Motor(10, 11)

# code.py
import time
import motor

left_motor = motor.Motor(9,8)

# TESTS
left_motor.move(100)   # FULL FORWARD
time.sleep(2)
left_motor.move(-100)  # FULL REVERSE
time.sleep(2)
left_motor.move(0)

# Start at FULL REVERSE and slowly change from -100 to 100
for i in range(-100, 100):
    left_motor.move(i)
    print(i)
    time.sleep(0.1)

# motor.py
from machine import Pin, PWM

class Motor:
    def __init__(self, in1, in2, frequency=1000):
        # Set up PWM outputs on the specified pins
        self.in1 = PWM(Pin(in1))
        self.in2 = PWM(Pin(in2))
        self.in1.freq(frequency)
        self.in2.freq(frequency)
        # Initialize duty to 0
        self.in1.duty_u16(0)
        self.in2.duty_u16(0)

    def move(self, power):
        # Constrain power to -100 to 100
        if power > 100:
            power = 100
        elif power < -100:
            power = -100

        # Scale to duty cycle (0–65535 for RP2040)
        duty = abs(power) * 65535 // 100

        if power > 0:
            self.in1.duty_u16(duty)
            self.in2.duty_u16(0)
        elif power < 0:
            self.in1.duty_u16(0)
            self.in2.duty_u16(duty)
        else:
            self.in1.duty_u16(0)
            self.in2.duty_u16(0)

Step 1: Wiring

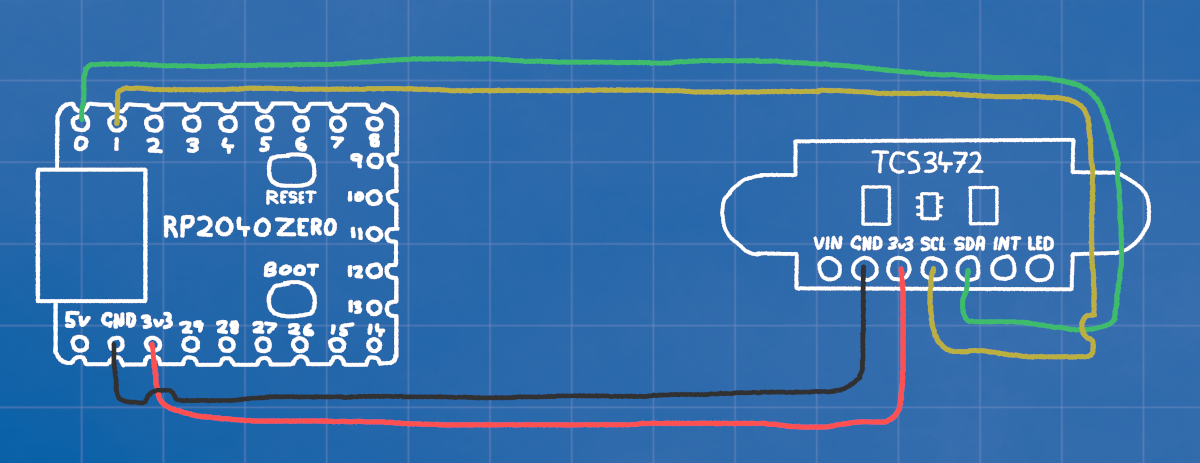

The TCS3472 Colour sensor is a smart device that uses I2C communication. This is a method of communication from one microcontroller to another, using only 2 wires (SCL and SDA).

RP2040 3v3 --------------- SENSOR 3v3

RP2040 GND --------------- SENSOR GND

RP2040 GP0 --------------- SENSOR SDA

RP2040 GP1 --------------- SENSOR SCL

So we need to connect power (3v3 and GND), and the two GPIO pins for communication.

We don't use VIN, this is for if we are using more than 3v3, the sensor has its own voltage regulator on board.

The INT pin on the sensor is an INTERRUPT. It flips on and off when theres new data to be read.

The LED pin on the sensor can be connected to a GPIO and switched high and low to turn it off and on. It's on by default.

Step 2: Coding

The minimal code to communicate with the colour sensor is a bit more in depth than the motor. We need to write and read registers, send bytes back and forth to turn it on, tell it what speed to work at, and how sensitive to be.

Since it's quite a lot we'll begin by putting it in a separate file. The code here includes the minimum needed to set up and read the colour sensor.

init_sensor() sends 4 messages to the sensor. The first tells it to turn on, the second tells it to turn on its RGB colour sensing.

The "Integration Time" controls how long the sensor will collect data before collating it into a message for you. Since we want to read hundreds of times a second we set it low.

Finally we set the "gain" quite high, this amplifies the signal, which is necessary since our fast integration time leaves the sensor with low sentivity.

If we only had to check the colour every half a second or so, we could get a much more sensitive result by setting a high integration time, and low gain.

# color.py

import time

TCS_ADDR = 0x29
COMMAND_BIT = 0x80

def i2c_locked(i2c, func, *args, **kwargs):
    """Wraps I2C operations with lock acquisition and release."""
    while not i2c.try_lock():
        pass
    try:
        return func(*args, **kwargs)
    finally:
        i2c.unlock()

def write_register(i2c, addr, reg, value):
    """Writes a byte to a register."""
    i2c_locked(i2c, i2c.writeto, addr, bytes([COMMAND_BIT | reg, value]))

def read_register(i2c, addr, reg, length):
    """Reads multiple bytes from a register."""
    result = bytearray(length)

    def transfer():
        i2c.writeto(addr, bytes([COMMAND_BIT | reg]))
        i2c.readfrom_into(addr, result)
        return result

    return i2c_locked(i2c, transfer)

def init_sensor(i2c):
    time.sleep(0.01)
    write_register(i2c, TCS_ADDR, 0x00, 0x01)  # Enable (POWER ON)
    time.sleep(0.01)
    write_register(i2c, TCS_ADDR, 0x00, 0x03)  # Enable (COLOR SENSING ON)
    write_register(i2c, TCS_ADDR, 0x01, 0xFF)  # Integration time 0xFF=2.4ms 0xF0=38.4ms 0x00=614.4ms
    write_register(i2c, TCS_ADDR, 0x0F, 0x03)  # Gain 0x00=1x, 0x01=4x 0.02=16x, 0x03=60x

def read_rgbc(i2c):
    data = read_register(i2c, TCS_ADDR, 0x14, 8)
    c = data[1] << 8 | data[0]
    r = data[3] << 8 | data[2]
    g = data[5] << 8 | data[4]
    b = data[7] << 8 | data[6]
    return r, g, b, c

Step 3: code.py

Finally, this is how we call our color.py code from our main code, initialise and read the sensor.

We use the busio library to handle our i2c. We initialise the connection by telling it which pins we're using for SCL and SDA, and how fast to communicate.

We then pass on that connection to initialize the sensor using color.init_sensor(i2c)

The whenever we read color.read_rgbc(i2c) it will give us an array with the [red, green, blue, color], with the color being the total light reflected, rather than just a single color.

# code.py

import busio
import time
import board
import color

i2c = busio.I2C(scl=board.GP1, sda=board.GP0, frequency=1_000_000)
color.init_sensor(i2c)

while True:
    value = color.read_rgbc(i2c)
    print(value)
    time.sleep(0.1)

Step 4: How to use it?

To take these numbers and use them effectively, we need to break out the different colour channels.

To the right is an example of how we might take the total colour from the result, and then use it to decide whether to turn or not.

value = color.read_rgbc(i2c) # Read the sensor [r,g,b,c]
# Extract each of the color values from the array
r = value[0] # red
g = value[1] # green
b = value[2] # blue
c = value[3] # all colors

if c > 30: # If the c value is greater than 30
    # Turn Right
    left_motor.move(50)
    left_motor.move(-50)
else:
    # Go Straight
    left_motor.move(50)
    left_motor.move(50)

Step 1: Wiring

Although you can connect many devices to the SCL SDA pins, each device must have a different address. This is a problem because every colour sensor has the same address.

If we just connected all our devices to the same SCA and SDA lines, they would both try to respond at the same time to every message addressed to them

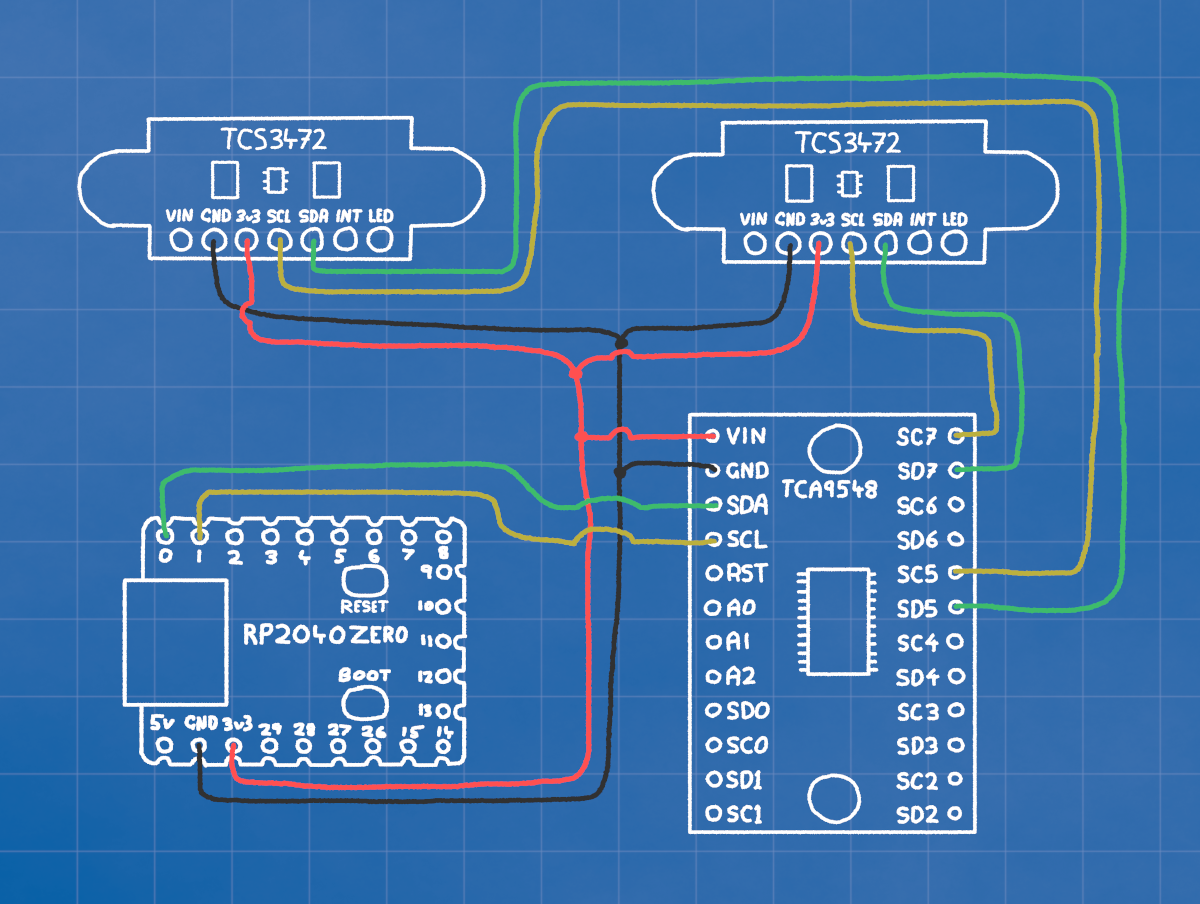

So we use a MULTIPLEXER. This lets us have 8 different I2C channels, with only one active at once. So with the connections in the picture, we'd switch to channel 5 to talk to the left sensor, and channel 7 to talk to the right.

RP2040 3v3 -- MUXER 3v3 -- SENSOR 1 3v3 -- SENSOR 2 3v3

RP2040 GND -- MUXER GND -- SENSOR 1 GND -- SENSOR 2 GND

RP2040 GP0 -- MUXER SDA

RP2040 GP1 -- MUXER SCL

MUXER SD5 --- SENSOR 1 SDA

MUXER SC5 --- SENSOR 1 SCL

MUXER SD7 --- SENSOR 2 SDA

MUXER SC7 --- SENSOR 2 SCL

Using this method, we can connect up to 8 colour sensors.

Step 2: Coding

Create a new module and paste the code on the right in there.

It's similar to the colour sensor code, we pass the select_channel() function the i2c, and a number for which channel (0-7) we want to talk through.

It sends a single message over the I2C bus, to the multiplexers address, telling it which channel to open.

# muxer.py

TCA_ADDR = 0x70

def i2c_locked(i2c, func, *args, **kwargs):
    """Wraps I2C operations with lock acquisition and release."""
    while not i2c.try_lock():
        pass
    try:
        return func(*args, **kwargs)
    finally:
        i2c.unlock()

def select_channel(i2c, channel):
    """Selects the TCA9548A multiplexer channel."""
    if not 0 <= channel <= 7:
        raise ValueError("Channel must be 0-7")
    i2c_locked(i2c, i2c.writeto, TCA_ADDR, bytes([1 << channel]))

Step 3: code.py

So in our main code we just import the muxer module, and make sure we switch to the correct channel before sending any messages.

We only need to keep one colour sensor object, but we do need to make sure we send the initialization message on each channel.

# code.py

import busio
import time
import board
import color
import muxer

i2c = busio.I2C(scl=board.GP1, sda=board.GP0, frequency=1_000_000)

# select channel 5
muxer.select_channel(i2c, 5)
# init sensor on channel 5
color.init_sensor(i2c)

# select channel 7
muxer.select_channel(i2c, 7)
#init sensor on channel 7
color.init_sensor(i2c)

while True:
    # select channel 5
    muxer.select_channel(i2c, 5)
    # read the values on channel 5
    value5 = color.read_rgbc(i2c)

    # select channel 7
    muxer.select_channel(i2c, 7)
    # read the values on channel 7
    value7 = color.read_rgbc(i2c)

    # print both sets of readings
    print(value5, value7)

    time.sleep(0.1)

Step 1: Wiring

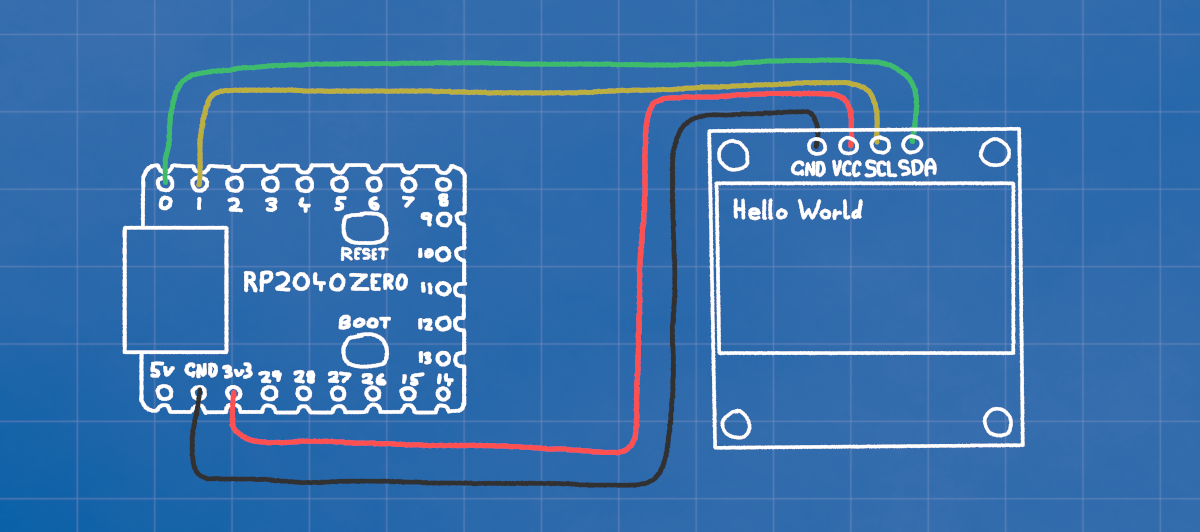

The OLED display also communicates using I2C, so all we need to do is connect the power (3v3 and GND), and the I2C lines (SDA and SCL).

RP2040 3v3 ------- OLED 3v3

RP2040 GND ------- OLED GND

RP2040 GP0 ------- OLED SDA

RP2040 GP1 ------- OLED SCL

Step 2: Coding

The code for the OLED is a little more complicated that what we want to code for ourselves, so we'll download a library and place it in out CIRCUITPY/lib folder.

adafruit_ssd1306.mpy

adafruit_framebuf.py

We initialize the display with display = adafruit_ssd1306.SSD1306_I2C(128, 32, i2c).

We colour the entire screen either black (off) or blue/white (on) with display.fill(0) for off, or 1 for on.

We write text with display.text(text, x, y, color).

Finally, before anythin will actually appear on the screen, we send it using display.show().

import board
import time
import busio
import adafruit_ssd1306

i2c = busio.I2C(scl=board.GP1, sda=board.GP0, frequency=1_000_000)
display = adafruit_ssd1306.SSD1306_I2C(128, 32, i2c)


display.fill(0) # Fill the screen with BLACK
# Print Hello world at the top left in COLOR
display.text("Hello World", 0, 0, 1)
display.show() # Send the update to the screen
time.sleep(2)


display.fill(1)# Fille the screen with COLOR
display.show() # Send the update to the screen
time.sleep(2)

# Print Hello world at x:10, y:20 in BLACK
display.text("Hello World", 10, 20, 0)
display.show() # Send the update to the screen

Step 3: How to use it?

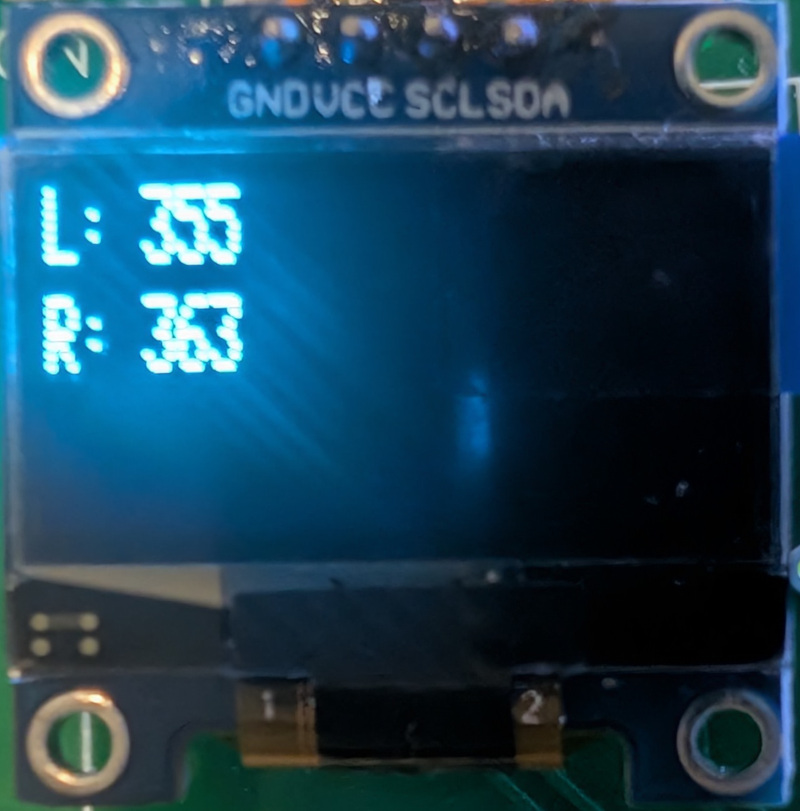

One of the main things we'll use the screen for is getting feedback on what the sensors are seeing, or what the robot is doing.

So when the robot is following a line, we might do something like the code on the right so that we can see the sensor colours in real time.

import board
import time
import busio
import adafruit_ssd1306
import color
import muxer

i2c = busio.I2C(scl=board.GP1, sda=board.GP0, frequency=1_000_000)
display = adafruit_ssd1306.SSD1306_I2C(128, 32, i2c)

# initialize two colour sensors
muxer.select_channel(i2c, 0)
color.init_sensor(i2c)
muxer.select_channel(i2c, 1)
color.init_sensor(i2c)


while True:
    # Read the colour channel from both colour sensors
    muxer.select_channel(i2c, 0)
    value0 = color.read_rgbc(i2c)[3]
    muxer.select_channel(i2c, 1)
    value1 = color.read_rgbc(i2c)[3]

    # Print the results on the display
    display.fill(0)
    display.text("L: " + str(value0), 0, 0, 1)
    display.text("R: " + str(value1), 0, 10, 1)
    display.show()
    time.sleep(0.1)

Step 1: Wiring

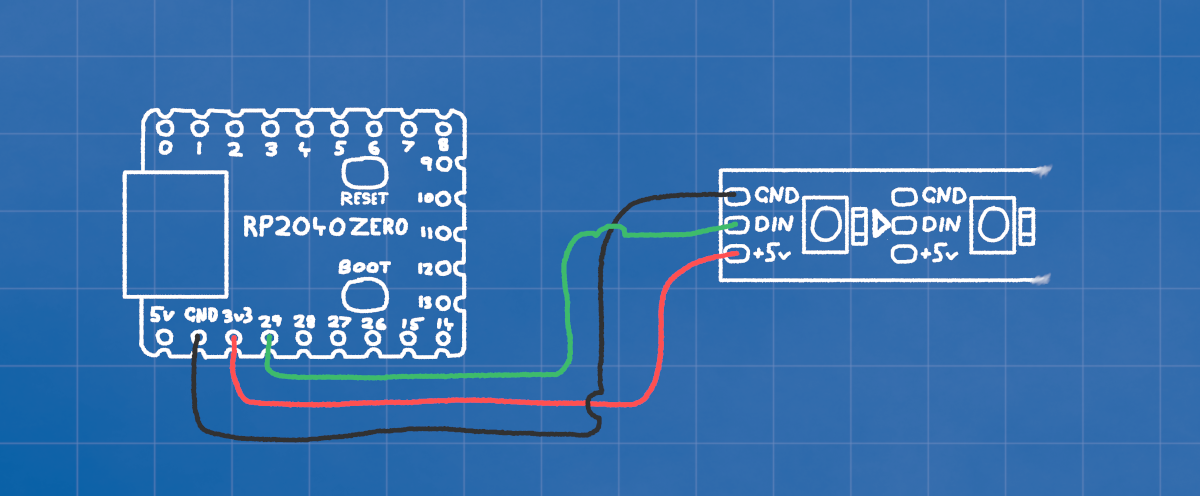

The RGB LED has its own little microcontroller we can talk to and set each of the three LEDs inside. We only need power and a single data connection.

RP2040 3v3 ------- RGB 5v

RP2040 GND ------- RGB GND

RP2040 GP29 ------ RGB DIN

Even though the RGB LED says it wants 5v, we give it 3v3. It's designed for 5v, but if we give it 5v power then the data sent to it using a 3v3 signal from GP29 won't be recognized.

Many of these leds can be connected in a string, with each one passing the messages along to the next. We'll just be using one in the examples here.

Step 2: Coding

Once again we'll be using a library to handle all the bits and bytes under the hood, so we only have to worry about setting colours.

neopixel.py

We only need to initialize the pixel with pixel = neopixel.NeoPixel(board.GP29, 1, brightness=0.2).

The "1" is the number of pixels we have, and we CAN set the brightness up to 1.0 but it's quite bright.

Then we just need to tell the pixel what colour to be, we talk to pixel[0] = (red,green,blue) because it's the only one we have. The numbers for each colour go from minimum 0, to maximum 255.

import board
import time
import neopixel

pixel = neopixel.NeoPixel(board.GP29, 1, brightness=0.2)

while True:
    pixel[0] = (255, 0, 0)  # Red
    time.sleep(1)
    pixel[0] = (0, 255, 0)  # Green
    time.sleep(1)
    pixel[0] = (0, 0, 255)  # Blue
    time.sleep(1)

Step 3: Make some pretty effects

This example has three loops, each one fades from one primary colour to the next.

We increase one LEDs brightness by assigning it i, which counts from 0-255

We decrease another LEDs brightness by making it 255-i so it begins at max, and counts down to zero as i becomes higher.

import board
import time
import neopixel

pixel = neopixel.NeoPixel(board.GP29, 1, brightness=0.2)

while True:
    # Fade Red->Green
    for i in range(256):
        pixel[0] = (255-i, i, 0)

    # Fade Green->Blue
    for i in range(256):
        pixel[0] = (0, 255-i, i)

    # Fade Blue->Red
    for i in range(256):
        pixel[0] = (i, 0, 255-i)

Step 1: Wiring

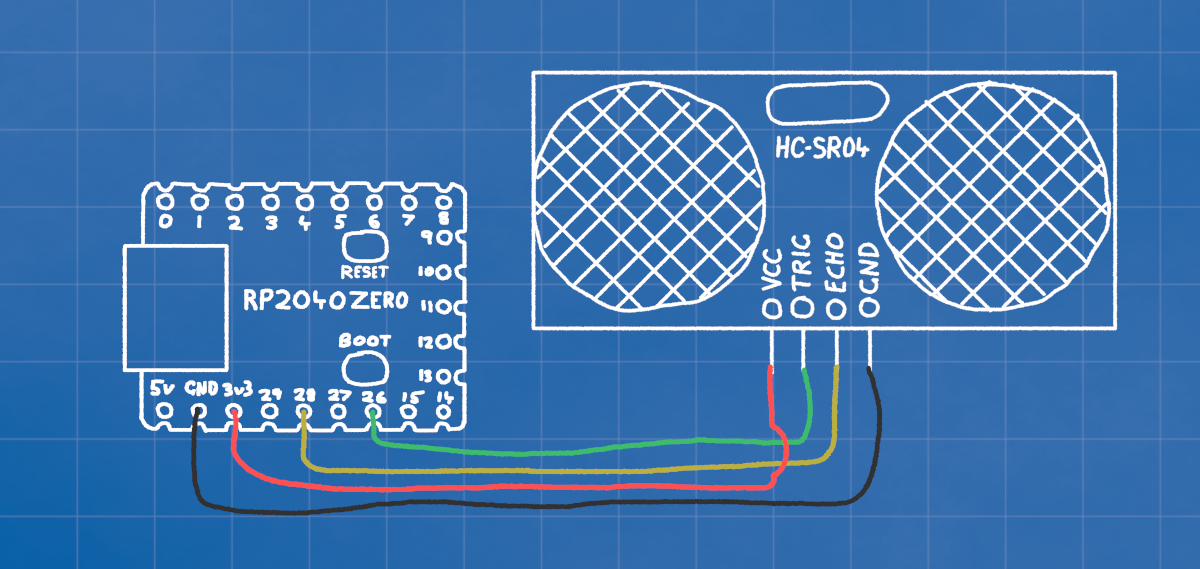

The HC-SR04 sonar sends out a little pulse when we turn the TRIG pin on and off. When the sound bounces back from something the ECHO pin will turn on and off. We use the time between the TRIG and the ECHO to determine how far the sound got before bouncing back from an object.

RP2040 3v3 ------- SONAR 5v

RP2040 GND ------- SONAR GND

RP2040 GP26 ------ SONAR TRIG

RP2040 GP28 ------ SONAR ECHO

Step 2: Coding

We'll use a library to handle sending and listening for the pulses. Put this module on your device.

When the "distance()" function is called, it sends a short pulse on the trigger pin, then waits for a response on the echo pin. The time it takes for the echo to return is used to calculate the distance.

# sonar.py
import machine
import time

class Sonar:
    def __init__(self, trigger_pin, echo_pin):
        self.trigger = machine.Pin(trigger_pin, machine.Pin.OUT)
        self.echo = machine.Pin(echo_pin, machine.Pin.IN)

    def distance(self):
        # Send a 10µs pulse to trigger
        self.trigger.off()
        time.sleep_us(2)
        self.trigger.on()
        time.sleep_us(10)
        self.trigger.off()

        # Wait for echo start
        while self.echo.value() == 0:
            pass
        start = time.ticks_us()

        # Wait for echo end
        while self.echo.value() == 1:
            pass
        end = time.ticks_us()

        # Calculate duration
        duration = time.ticks_diff(end, start)

        # Convert to distance (speed of sound ~343 m/s)
        distance = (duration / 2) * 0.0343
        return int(distance)

Step 3: Call it in the main.py

Now all we need to do is create the object and call the distance function in the main.py file.

# main.py
import time
import sonar

# Create sonar object with trigger on GP3 and echo on GP2
sonar = sonar.Sonar(trigger_pin=26, echo_pin=28)

while True:
    dist = sonar.distance()
    print("Distance:", dist, "cm")
    time.sleep(1)

Step 1: Coding

Create a new file called remote.py and add the code to the right.

# remote.py

import board
import busio

START_BYTE = 0xAA
END_BYTE = 0xBB
PACKET_LENGTH = 8

# Calibration values
LEFT_MIN = 0
LEFT_MID = 131
LEFT_MAX = 203
RIGHT_MIN = 51
RIGHT_MID = 120
RIGHT_MAX = 255

class ThumbInput:
    def __init__(self, tx=board.GP0, rx=board.GP1, baudrate=115200):
        self.uart = busio.UART(tx=tx, rx=rx, baudrate=baudrate, timeout=0.1)
        self.buffer = bytearray()

    def read(self):
        """Returns (left_percent, right_percent) in range [-100, 100], or None if packet incomplete."""
        data = self.uart.read(1)

        if data:
            byte = data[0]
            self.buffer.append(byte)

            if len(self.buffer) > PACKET_LENGTH:
                self.buffer = self.buffer[-PACKET_LENGTH:]

            if len(self.buffer) == PACKET_LENGTH and self.buffer[0] == START_BYTE and self.buffer[-1] == END_BYTE:
                payload = self.buffer[1:7]
                self.buffer = bytearray()
                left_raw = payload[1]
                right_raw = payload[3]

                left = self._map_thumbstick(left_raw, LEFT_MIN, LEFT_MID, LEFT_MAX)
                right = self._map_thumbstick(right_raw, RIGHT_MIN, RIGHT_MID, RIGHT_MAX)

                return (int(left), int(right))

        return None

    def _map_thumbstick(self, x, min_val, mid_val, max_val):
        if x < mid_val:
            return (x - mid_val) / (mid_val - min_val) * 100
        else:
            return (x - mid_val) / (max_val - mid_val) * 100

Step 2: Using the recieved signal

Import just the ThumbInput part of the library.

Initialize the receiver with receiver = ThumbInput()

Create a new loop as this won't work nicely with any i2c, this loop should be placed after the motors are created, and before the i2c is initialized.

from remote import ThumbInput

receiver = ThumbInput()

while True:
    result = receiver.read()
    if result:
        left_motor.move(result[0])
        right_motor.move(result[1])
        #print("Left:", result[0], "Right:", result[1])
    time.sleep(0.001)

Step 1: Understand the problem

Like most inputs, the sonar data is noisy, and there are different types of noise.

On the right you can see a fairly fixed output, but with sudden spikes of irregular data.

So we need code that will filter our spikes like that, the easiest is to just throw them away. To do this we'll use a simple moving average filter.

Step 2: Coding a moving average filter

Instead of just taking single data points and making decisions, we'll keep an array of the last 8 readings.

First we need to start keeping a rolling buffer of the last 8 readings.

We'll use a list to store the readings, and we'll use the append() method to add new readings to the end of the list.

We'll use the pop(0) method to remove the oldest reading from the start of the list.

We'll use the len() method to check the size of the list.

We'll use the print() method to print the list.

NOTE: We can get smoother results by using a larger buffer size, but this can also start to introduce lag.

BUFFER_SIZE = 8 # The size of the buffer
buffer = []     # Create an empty array to hold
                # the readings (this is the rolling buffer)

while True:
    dist = sonar.distance()  # Get a new reading
    buffer.append(dist)      # Add it to the buffer

    # If the buffer is too big, remove the oldest reading
    if len(buffer) > BUFFER_SIZE:
        buffer.pop(0)

    print(buffer) # Print the buffer

Step 3: Take the average

Now all we need to do is create the object and call the distance function in the main.py file.

def average_filter(values):
    total = 0
    for i in range(len(values)):
        total = total + values[i]

    return total / len(values)


# Call in the main loop
filtered = average_filter(values)
print(filtered)



Step 4: Take the median

That's better, but those large peaks are still throwing our average off quite a bit. We can improve this by taking the MEDIAN of the buffer rather than the average.

def median_filter(values):
    sorted_vals = sorted(values)    # sort the values from low->high
    mid = int(len(sorted_vals) / 2) # get the middle index
    return sorted_vals[mid]         # return the value of the median


# Call in the main loop
filtered = median_filter(values)
print(filtered)



Step 5: Fine tuning

Before moving on, play with the buffer size to see how it effects the results AND the responsiveness to changes.

Try and find a good balance with the time.sleep() value as well

Step 1: Coding

Create a new file called remote.py and add the code to the right.

# remote.py

import board
import busio

START_BYTE = 0xAA
END_BYTE = 0xBB
PACKET_LENGTH = 8

# Calibration values
LEFT_MIN = 0
LEFT_MID = 131
LEFT_MAX = 203
RIGHT_MIN = 51
RIGHT_MID = 120
RIGHT_MAX = 255

class ThumbInput:
    def __init__(self, tx=board.GP0, rx=board.GP1, baudrate=115200):
        self.uart = busio.UART(tx=tx, rx=rx, baudrate=baudrate, timeout=0.1)
        self.buffer = bytearray()

    def read(self):
        """Returns (left_percent, right_percent) in range [-100, 100], or None if packet incomplete."""
        data = self.uart.read(1)

        if data:
            byte = data[0]
            self.buffer.append(byte)

            if len(self.buffer) > PACKET_LENGTH:
                self.buffer = self.buffer[-PACKET_LENGTH:]

            if len(self.buffer) == PACKET_LENGTH and self.buffer[0] == START_BYTE and self.buffer[-1] == END_BYTE:
                payload = self.buffer[1:7]
                self.buffer = bytearray()
                left_raw = payload[1]
                right_raw = payload[3]

                left = self._map_thumbstick(left_raw, LEFT_MIN, LEFT_MID, LEFT_MAX)
                right = self._map_thumbstick(right_raw, RIGHT_MIN, RIGHT_MID, RIGHT_MAX)

                return (int(left), int(right))

        return None

    def _map_thumbstick(self, x, min_val, mid_val, max_val):
        if x < mid_val:
            return (x - mid_val) / (mid_val - min_val) * 100
        else:
            return (x - mid_val) / (max_val - mid_val) * 100

Step 2: Using the recieved signal

Import just the ThumbInput part of the library.

Initialize the receiver with receiver = ThumbInput()

Create a new loop as this won't work nicely with any i2c, this loop should be placed after the motors are created, and before the i2c is initialized.

from remote import ThumbInput

receiver = ThumbInput()

while True:
    result = receiver.read()
    if result:
        left_motor.move(result[0])
        right_motor.move(result[1])
        #print("Left:", result[0], "Right:", result[1])
    time.sleep(0.001)

Step 1: Coding

Up until now we've been using an algorithm known as "bang-bang" to track the line.

If the left sensor sees something, we take a single action, turn left.

Else if the right sensor sees something, we take a single action, gurn right.

Else go straight.

This works well, but it can be a bit jerky.

Step 2: Use a PID algorithm

A PID algorithm on the other hand tries to always keep the robot exactly on the line.

First we have to change our two colour values, left_color and right_color into a single error value.

right_color - left_color = error

Now if we are on the line our error should be 0, with ot becoming positive if we move one way, and negative if we move the other.

Try adjusting the Kp value to control how aggressively the robot will attempt to drive towards the line.

Step 3: The Code

The pid.py library is simple, we initialize it with a P, I, and D.

These stand for Proportional, Integral, and Derivative

The P value controls how aggressively proportional the final result will be, if we set it too high, the output will be too high and the robot will adjust too hard. If we set it too low, the robot will be too lazy about tracking the line and may not turn fast enough to stay on it.

# pid.py

class PIDController:
    def __init__(self, kp, ki, kd):
        self.kp = kp
        self.ki = ki
        self.kd = kd

        self.integral = 0
        self.last_error = 0

    def compute(self, error):
        self.integral += error
        derivative = error - self.last_error
        self.last_error = error

        output = (self.kp * error) + (self.ki * self.integral) + (self.kd * derivative)
        return output

# code.py

import pid

linePID = pid.PIDController(kp=1.0, ki=0.0, kd=0.0)

while True:
    error = right_color - left_color  # Calculate the error
    output = linePID.compute(error)
    # Use the output to adjust the motors
    print(error, output)
