Step 1: Open the CIRCUITPY/code.py file

When your device is plugged into your computer, you should be able to find the CIRCUITPY drive in your list of drives. Open the code.py file on that drive using the "Load" button.

Step 2: Open the Serial Monitor

To get messages back from your device, and to read errors, press the "Serial" button nd make sure you have the "CircuitPython REPL" window open at the bottom.

Step 3: Hello World

Your code is only updated on your device when you press "Save". If you write the code print("Hello World") and then save, yuou should see the message appear in the Serial monitor.

Step 4: Code all the things!

From here you can start to write code, if you need a refresher on basic python code, go to the online lessons here.

https://realrobots.net/robocode/

Note: Common Problems

If you see the ">>>" at the bottom of your serial monitor, and your code isn't running, that's because you've accidentally put the monitor into a special mode that lets you write code directly into serial. In this case your saved code won't run. To escape this mode, select the serial monitor, press "enter/return" a few times, and press CTRL-D.

Step 1: Wiring

!!DO NOT CONNECT POSITIVE BATTERY DIRECTLY TO THE MICROCONTROLLER!!

The connections on the RP2040 all use 3.3v (3v3), which is far too little to drive the motors. It can drive a motor DRIVER though. The motor driver lets us control the larger voltage from the battery to the motor.

MOTOR+ (red) ------------- DRIVER OUT1

MOTOR- (black) ----------- DRIVER OUT2

RP2040 GP9 --------------- DRIVER IN2

RP2040 GP8 --------------- DRIVER IN1

BATTERY+ (red) ----------- DRIVER VCC

BATTERY- (black) --------- DRIVER GND --------- RP2040 GND

The driver is powered by the battery, but the microcontroller with be powered by the USB. It's very important that the positive battery voltage is never connected directly to the RP2040 as that will immediately release the magic smoke.

The GND on the RP2040, driver, and battery must all be connected though. The GND is 0 volts, and is used as a reference to make sure 0 is the same on every device.

Step 2: Coding

We control the motor driver by switching which of the OUT1 and OUT2 connections is the positive and negative. When one is "high" and the other "low", the motor spins one way. If we switch which is high and low the motor will spin the other way.

To set OUT1 to max voltage, we set IN1 to 3.3v, the same for OUT2 and IN2. We can get finer control by using PWM controls, which turn the pins high and low quickly enough that it simulates voltages in between 0v and 3.3v

import board
import pwmio
import time

motorIN1 = pwmio.PWMOut(board.IO8, frequency=1000, duty_cycle=0)
motorIN2 = pwmio.PWMOut(board.IO9, frequency=1000, duty_cycle=0)


# DRIVE FORWARD
motorIN1.duty_cycle = 65535 # This is the maximum value
motorIN2.duty_cycle = 0     # This is the minimum value
time.sleep(1)

# DRIVE BACKWARD
motorIN1.duty_cycle = 0
motorIN2.duty_cycle = 65535
time.sleep(1)

# STOP
motorIN1.duty_cycle = 0
motorIN2.duty_cycle = 0

Step 3: Making it easier

This works, but takes a lot of typing each time, and is a little hard to read. On the right we can see a function which lets us drive the motor with a single command, and set the speed with a number from -100 to 100.

import board
import board
import pwmio
import time

# Initialize motor PWM pins
motorIN1 = pwmio.PWMOut(board.GP8, frequency=1000, duty_cycle=0)
motorIN2 = pwmio.PWMOut(board.GP9, frequency=1000, duty_cycle=0)

def motor(power):
    # Make sure power is never greater than 100 or less than -100
    if power > 100:
        power = 100
    elif power < -100:
        power = -100

    # Convert 0-100 value, to 0 to 65535
    duty = abs(power) * 65535 // 100

    # Apply power to the correct motor pin
    if power > 0:
        motorIN1.duty_cycle = duty
        motorIN2.duty_cycle = 0
    elif power < 0:
        motorIN1.duty_cycle = 0
        motorIN2.duty_cycle = duty
    else:
        motorIN1.duty_cycle = 0
        motorIN2.duty_cycle = 0

# TESTS
motor(100) # FULL FORWARD
time.sleep(3)
motor(-100) # FULL REVERSE
time.sleep(3)

# Start at FULL REVERSE and slowly change from -100 to 100
for i in range(-100, 100):
    motor(i)
    print(i)
    time.sleep(0.1)

Step 4: Making it professional

Finally, to make our final code modular, cleaner, and easier to understand we can offload all out motor code into a new module.

We make a second file called motors.py which we'll import and call from our main code.py file.

Now all we need to do from the main code is:

Import the module

import motors

Initialize a motor object

left_motor = motor.Motor(board.GP8, board.GP9)

Set the power

left_motor.move(100)

You can also add a second, third, or 20th motor at any time just by initializing another motor.Motor object.

right_motor = motor.Motor(board.GP10, board.GP11)

# code.py
import board
import time
import motor

left_motor = motor.Motor(board.GP8, board.GP9)

# TESTS
left_motor.move(100)   # FULL FORWARD
time.sleep(2)
left_motor.move(-100)  # FULL REVERSE
time.sleep(2)
left_motor.move(0)

# Start at FULL REVERSE and slowly change from -100 to 100
for i in range(-100, 100):
    left_motor.move(i)
    print(i)
    time.sleep(0.1)

# motors.py
import pwmio

class Motor:
    def __init__(self, in1, in2, frequency=1000):
        # Set up PWM outputs on the specified pins
        self.in1 = pwmio.PWMOut(in1, frequency=frequency, duty_cycle=0)
        self.in2 = pwmio.PWMOut(in2, frequency=frequency, duty_cycle=0)

    def move(self, power):
        # Constrain power to -100 to 100
        if power > 100:
            power = 100
        elif power < -100:
            power = -100

        # Scale to duty cycle
        duty = abs(power) * 65535 // 100

        if power > 0:
            self.in1.duty_cycle = duty
            self.in2.duty_cycle = 0
        elif power < 0:
            self.in1.duty_cycle = 0
            self.in2.duty_cycle = duty
        else:
            self.in1.duty_cycle = 0
            self.in2.duty_cycle = 0

Step 1: Wiring

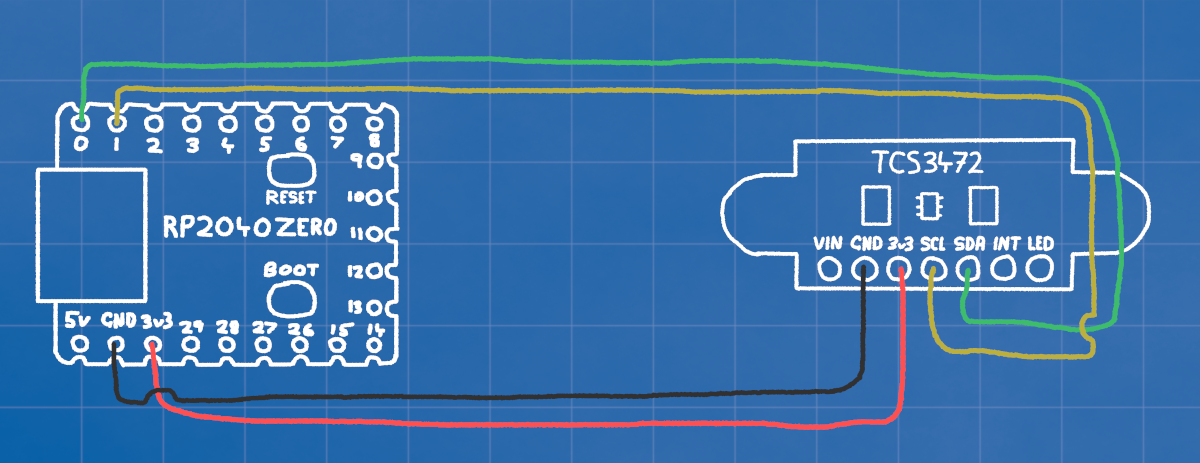

The TCS3472 Colour sensor is a smart device that uses I2C communication. This is a method of communication from one microcontroller to another, using only 2 wires (SCL and SDA).

RP2040 3v3 --------------- SENSOR 3v3

RP2040 GND --------------- SENSOR GND

RP2040 GP0 --------------- SENSOR SDA

RP2040 GP1 --------------- SENSOR SCL

So we need to connect power (3v3 and GND), and the two GPIO pins for communication.

We don't use VIN, this is for if we are using more than 3v3, the sensor has its own voltage regulator on board.

The INT pin on the sensor is an INTERRUPT. It flips on and off when theres new data to be read.

The LED pin on the sensor can be connected to a GPIO and switched high and low to turn it off and on. It's on by default.

Step 2: Coding

The minimal code to communicate with the colour sensor is a bit more in depth than the motor. We need to write and read registers, send bytes back and forth to turn it on, tell it what speed to work at, and how sensitive to be.

Since it's quite a lot we'll begin by putting it in a separate file. The code here includes the minimum needed to set up and read the colour sensor.

init_sensor() sends 4 messages to the sensor. The first tells it to turn on, the second tells it to turn on its RGB colour sensing.

The "Integration Time" controls how long the sensor will collect data before collating it into a message for you. Since we want to read hundreds of times a second we set it low.

Finally we set the "gain" quite high, this amplifies the signal, which is necessary since our fast integration time leaves the sensor with low sentivity.

If we only had to check the colour every half a second or so, we could get a much more sensitive result by setting a high integration time, and low gain.

# color.py

import time

TCS_ADDR = 0x29
COMMAND_BIT = 0x80

def i2c_locked(i2c, func, *args, **kwargs):
    """Wraps I2C operations with lock acquisition and release."""
    while not i2c.try_lock():
        pass
    try:
        return func(*args, **kwargs)
    finally:
        i2c.unlock()

def write_register(i2c, addr, reg, value):
    """Writes a byte to a register."""
    i2c_locked(i2c, i2c.writeto, addr, bytes([COMMAND_BIT | reg, value]))

def read_register(i2c, addr, reg, length):
    """Reads multiple bytes from a register."""
    result = bytearray(length)

    def transfer():
        i2c.writeto(addr, bytes([COMMAND_BIT | reg]))
        i2c.readfrom_into(addr, result)
        return result

    return i2c_locked(i2c, transfer)

def init_sensor(i2c):
    time.sleep(0.01)
    write_register(i2c, TCS_ADDR, 0x00, 0x01)  # Enable (POWER ON)
    time.sleep(0.01)
    write_register(i2c, TCS_ADDR, 0x00, 0x03)  # Enable (COLOR SENSING ON)
    write_register(i2c, TCS_ADDR, 0x01, 0xFF)  # Integration time 0xFF=2.4ms 0xF0=38.4ms 0x00=614.4ms
    write_register(i2c, TCS_ADDR, 0x0F, 0x03)  # Gain 0x00=1x, 0x01=4x 0.02=16x, 0x03=60x

def read_rgbc(i2c):
    data = read_register(i2c, TCS_ADDR, 0x14, 8)
    c = data[1] << 8 | data[0]
    r = data[3] << 8 | data[2]
    g = data[5] << 8 | data[4]
    b = data[7] << 8 | data[6]
    return r, g, b, c

Step 3: code.py

Finally, this is how we call our color.py code from our main code, initialise and read the sensor.

We use the busio library to handle our i2c. We initialise the connection by telling it which pins we're using for SCL and SDA, and how fast to communicate.

We then pass on that connection to initialize the sensor using color.init_sensor(i2c)

The whenever we read color.read_rgbc(i2c) it will give us an array with the [red, green, blue, color], with the color being the total light reflected, rather than just a single color.

# code.py

import busio
import time
import board
import color

i2c = busio.I2C(scl=board.GP1, sda=board.GP0, frequency=1_000_000)
color.init_sensor(i2c)

while True:
    value = color.read_rgbc(i2c)
    print(value)
    time.sleep(0.1)

Step 4: How to use it?

To take these numbers and use them effectively, we need to break out the different colour channels.

To the right is an example of how we might take the total colour from the result, and then use it to decide whether to turn or not.

value = color.read_rgbc(i2c) # Read the sensor [r,g,b,c]
# Extract each of the color values from the array
r = value[0] # red
g = value[1] # green
b = value[2] # blue
c = value[3] # all colors

if c > 30: # If the c value is greater than 30
    # Turn Right
    left_motor.move(50)
    left_motor.move(-50)
else:
    # Go Straight
    left_motor.move(50)
    left_motor.move(50)

Step 1: Wiring

Although you can connect many devices to the SCL SDA pins, each device must have a different address. This is a problem because every colour sensor has the same address.

If we just connected all our devices to the same SCA and SDA lines, they would both try to respond at the same time to every message addressed to them

So we use a MULTIPLEXER. This lets us have 8 different I2C channels, with only one active at once. So with the connections in the picture, we'd switch to channel 5 to talk to the left sensor, and channel 7 to talk to the right.

RP2040 3v3 -- MUXER 3v3 -- SENSOR 1 3v3 -- SENSOR 2 3v3

RP2040 GND -- MUXER GND -- SENSOR 1 GND -- SENSOR 2 GND

RP2040 GP0 -- MUXER SDA

RP2040 GP1 -- MUXER SCL

MUXER SD5 --- SENSOR 1 SDA

MUXER SC5 --- SENSOR 1 SCL

MUXER SD7 --- SENSOR 2 SDA

MUXER SC7 --- SENSOR 2 SCL

Using this method, we can connect up to 8 colour sensors.

Step 2: Coding

Create a new module and paste the code on the right in there.

It's similar to the colour sensor code, we pass the select_channel() function the i2c, and a number for which channel (0-7) we want to talk through.

It sends a single message over the I2C bus, to the multiplexers address, telling it which channel to open.

# muxer.py

TCA_ADDR = 0x70

def i2c_locked(i2c, func, *args, **kwargs):
    """Wraps I2C operations with lock acquisition and release."""
    while not i2c.try_lock():
        pass
    try:
        return func(*args, **kwargs)
    finally:
        i2c.unlock()

def select_channel(i2c, channel):
    """Selects the TCA9548A multiplexer channel."""
    if not 0 <= channel <= 7:
        raise ValueError("Channel must be 0-7")
    i2c_locked(i2c, i2c.writeto, TCA_ADDR, bytes([1 << channel]))

Step 3: code.py

So in our main code we just import the muxer module, and make sure we switch to the correct channel before sending any messages.

We only need to keep one colour sensor object, but we do need to make sure we send the initialization message on each channel.

# code.py

import busio
import time
import board
import color
import muxer

i2c = busio.I2C(scl=board.GP1, sda=board.GP0, frequency=1_000_000)

# select channel 5
muxer.select_channel(i2c, 5)
# init sensor on channel 5
color.init_sensor(i2c)

# select channel 7
muxer.select_channel(i2c, 7)
#init sensor on channel 7
color.init_sensor(i2c)

while True:
    # select channel 5
    muxer.select_channel(i2c, 5)
    # read the values on channel 5
    value5 = color.read_rgbc(i2c)

    # select channel 7
    muxer.select_channel(i2c, 7)
    # read the values on channel 7
    value7 = color.read_rgbc(i2c)

    # print both sets of readings
    print(value5, value7)

    time.sleep(0.1)

Step 1: Wiring

The OLED display also communicates using I2C, so all we need to do is connect the power (3v3 and GND), and the I2C lines (SDA and SCL).

RP2040 3v3 ------- OLED 3v3

RP2040 GND ------- OLED GND

RP2040 GP0 ------- OLED SDA

RP2040 GP1 ------- OLED SCL

Step 2: Coding

The code for the OLED is a little more complicated that what we want to code for ourselves, so we'll download a library and place it in out CIRCUITPY/lib folder.

adafruit_ssd1306.mpy

adafruit_framebuf.py

We initialize the display with display = adafruit_ssd1306.SSD1306_I2C(128, 32, i2c).

We colour the entire screen either black (off) or blue/white (on) with display.fill(0) for off, or 1 for on.

We write text with display.text(text, x, y, color).

Finally, before anythin will actually appear on the screen, we send it using display.show().

import board
import time
import busio
import adafruit_ssd1306

i2c = busio.I2C(scl=board.GP1, sda=board.GP0, frequency=1_000_000)
display = adafruit_ssd1306.SSD1306_I2C(128, 32, i2c)


display.fill(0) # Fill the screen with BLACK
# Print Hello world at the top left in COLOR
display.text("Hello World", 0, 0, 1)
display.show() # Send the update to the screen
time.sleep(2)


display.fill(1)# Fille the screen with COLOR
display.show() # Send the update to the screen
time.sleep(2)

# Print Hello world at x:10, y:20 in BLACK
display.text("Hello World", 10, 20, 0)
display.show() # Send the update to the screen

Step 3: How to use it?

One of the main things we'll use the screen for is getting feedback on what the sensors are seeing, or what the robot is doing.

So when the robot is following a line, we might do something like the code on the right so that we can see the sensor colours in real time.

import board
import time
import busio
import adafruit_ssd1306
import color
import muxer

i2c = busio.I2C(scl=board.GP1, sda=board.GP0, frequency=1_000_000)
display = adafruit_ssd1306.SSD1306_I2C(128, 32, i2c)

# initialize two colour sensors
muxer.select_channel(i2c, 0)
color.init_sensor(i2c)
muxer.select_channel(i2c, 1)
color.init_sensor(i2c)


while True:
    # Read the colour channel from both colour sensors
    muxer.select_channel(i2c, 0)
    value0 = color.read_rgbc(i2c)[3]
    muxer.select_channel(i2c, 1)
    value1 = color.read_rgbc(i2c)[3]

    # Print the results on the display
    display.fill(0)
    display.text("L: " + str(value0), 0, 0, 1)
    display.text("R: " + str(value1), 0, 10, 1)
    display.show()
    time.sleep(0.1)

Step 1: Wiring

The RGB LED has its own little microcontroller we can talk to and set each of the three LEDs inside. We only need power and a single data connection.

RP2040 3v3 ------- RGB 5v

RP2040 GND ------- RGB GND

RP2040 GP29 ------ RGB DIN

Even though the RGB LED says it wants 5v, we give it 3v3. It's designed for 5v, but if we give it 5v power then the data sent to it using a 3v3 signal from GP29 won't be recognized.

Many of these leds can be connected in a string, with each one passing the messages along to the next. We'll just be using one in the examples here.

Step 2: Coding

Once again we'll be using a library to handle all the bits and bytes under the hood, so we only have to worry about setting colours.

neopixel.py

We only need to initialize the pixel with pixel = neopixel.NeoPixel(board.GP29, 1, brightness=0.2).

The "1" is the number of pixels we have, and we CAN set the brightness up to 1.0 but it's quite bright.

Then we just need to tell the pixel what colour to be, we talk to pixel[0] = (red,green,blue) because it's the only one we have. The numbers for each colour go from minimum 0, to maximum 255.

import board
import time
import neopixel

pixel = neopixel.NeoPixel(board.GP29, 1, brightness=0.2)

while True:
    pixel[0] = (255, 0, 0)  # Red
    time.sleep(1)
    pixel[0] = (0, 255, 0)  # Green
    time.sleep(1)
    pixel[0] = (0, 0, 255)  # Blue
    time.sleep(1)

Step 3: Make some pretty effects

This example has three loops, each one fades from one primary colour to the next.

We increase one LEDs brightness by assigning it i, which counts from 0-255

We decrease another LEDs brightness by making it 255-i so it begins at max, and counts down to zero as i becomes higher.

import board
import time
import neopixel

pixel = neopixel.NeoPixel(board.GP29, 1, brightness=0.2)

while True:
    # Fade Red->Green
    for i in range(256):
        pixel[0] = (255-i, i, 0)

    # Fade Green->Blue
    for i in range(256):
        pixel[0] = (0, 255-i, i)

    # Fade Blue->Red
    for i in range(256):
        pixel[0] = (i, 0, 255-i)

Step 1: Wiring

The HC-SR04 sonar sends out a little pulse when we turn the TRIG pin on and off. When the sound bounces back from something the ECHO pin will turn on and off. We use the time between the TRIG and the ECHO to determine how far the sound got before bouncing back from an object.

RP2040 3v3 ------- SONAR 5v

RP2040 GND ------- SONAR GND

RP2040 GP26 ------ SONAR TRIG

RP2040 GP28 ------ SONAR ECHO

Step 2: Coding

We'll use a library to handle sending and listening for the pulses. Put this module in your CIRCUITPY/lib folder.

adafruit_hcsr04.py

Note the timeout=0.005, this is important as it tells the code how long to wait for an ECHO. If we don't have that, our code could be blocked for quite a lot of time if the only obstacles are a long way away.

Even though all we really need is to get the distance with sonar.distance, when no echo is received in time an error will occur that will stop your code from running.

With our try-except block, any errors will just run whatever is in the except part. In this case, nothing.

import board
import adafruit_hcsr04

# Initialize the sonar device
sonar = adafruit_hcsr04.HCSR04(trigger_pin=board.GP26, echo_pin=board.GP28, timeout=0.005)

while True:
    distance = 99

    # The try-except block catches errors that
    # occur when no signal returns in time
    try:
        distance = sonar.distance
        print(distance)
    except RuntimeError as e:
        pass

Step 3: Clean it up a bit

To tidy up our main loop, we can move all that to a function so the main loop just needs get_distance().

If your code is getting quite long, you might even take functions like this and put them in your own module to keep your main code easy to read.

import board
import time
import adafruit_hcsr04

# Initialize the sonar device
sonar = adafruit_hcsr04.HCSR04(trigger_pin=board.GP26, echo_pin=board.GP28, timeout=0.005)

def get_distance():
    distance = 99
    try:
        distance = sonar.distance
    except RuntimeError as e:
        pass
    return distance

while True:
    print(get_distance())
    time.sleep(0.1)
